TH3020 | $69,500 |
|---|---|
Weight | 13889 lbs |
Lift Capacity | 6600 lbs |
Max lift height | 23 ft |
Width | 86 in |
Length w/o forks | 167 in |
Height | 98 in |
Engine | Cummins 2.8 Turbo Diesel |
Rated power | 74 hp |
Fuel type/Capacity | Diesel/30 gal |
Available attachments | 38 |

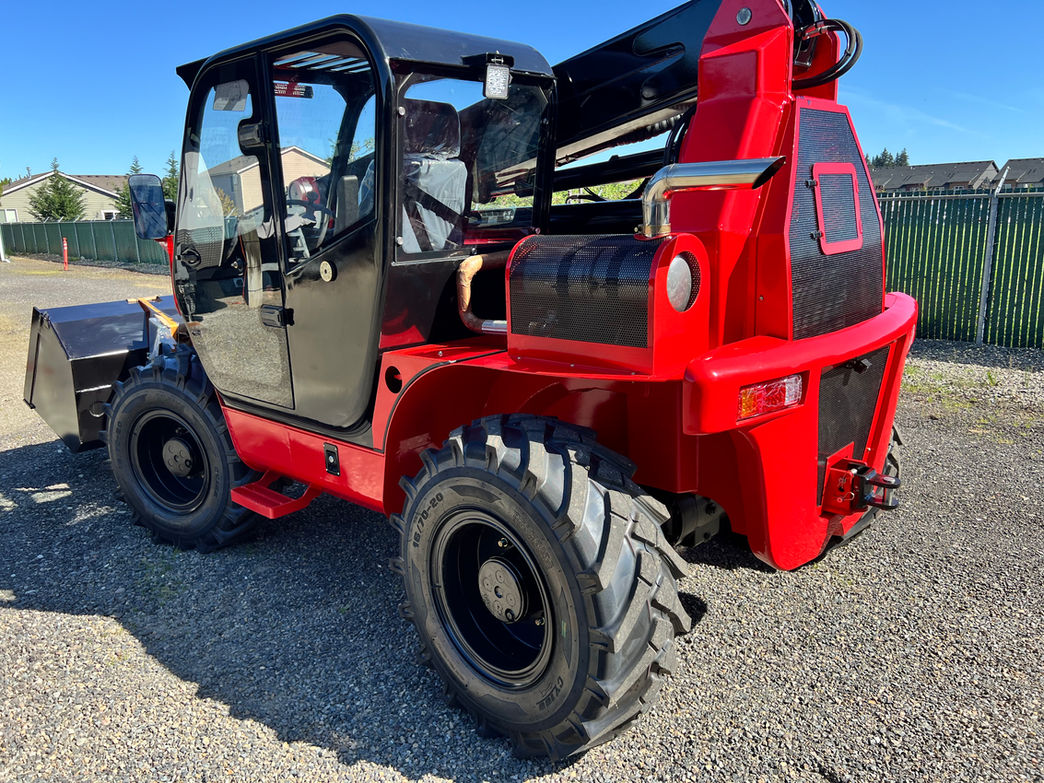

A cost-effective, multi-purpose Telehandler designed to save you both time and money, the Ranger TH3020 Telescopic Handler combines lift with height to deliver versatility at the job site. Offering 6600lbs of lift capacity, this machine can lift, move, and place pallets of bricks, bales of hay, or whatever else your work demands. Designed for tough landscaping conditions or unpredictable environments such as equestrian centers, the TH3020 is a lightweight, ultra-compact machine that boasts all-terrain capabilities. It's built to go off-road and get in and out of tight spaces with its quad steering. Thanks to the climate controlled enclosed cab, you’re staying dry and comfortable year round.
The TH3020 comes standard with auxiliary hydraulics which allows you to utilize any of our 38 different attachments.
Lift capacity: 6600lb
Max lift height: 23ft
Weight: 13889lb
Engine: 74hp Cummins Turbodiesel, 4 cylinder water cooled, direct injection, Model QSF2.8tETC74
Transmission: 2 speed forward and reverse. Max speed 17mph
Steering modes: front wheel only, front + back wheels, crab mode
Hydraulic pressure:2900psi
Hydraulic flow: 25gpm
Fork dimensions: 44”x50”x1.8”
TH3020 FAQ
-
1. Does this unit support hydraulic auxiliary attachmentsYes! The 1014 comes standard with a boom mounted hydraulic diverter valve that allows you to install hydraulic powered attachments such as Augers and Hydraulic Quick Coupler.
-
2. What are the different colors I can order?We can build and paint our excavators to match your specific needs. We offer a wide range of colors from black, white, yellow, blue, red, orange, all the way to pink and anything in between.
-
3. Will I be able to get spare parts?Yes. We carry all parts for our machines. The engine is an off the shelf Briggs&Stratton. The hydraulic pump is made by Parker. Drives are by Eaton. All brand names that are readily available at any auto or hydraulic store.
-
4. Can the 1014 series be equipped with a Diesel engine?No, the 1014 only comes with 1 engine variant, a 13.5hp Briggs&Stratton.
